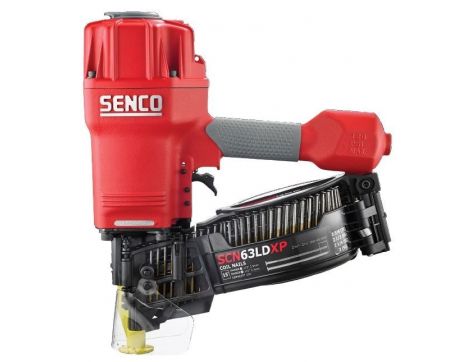

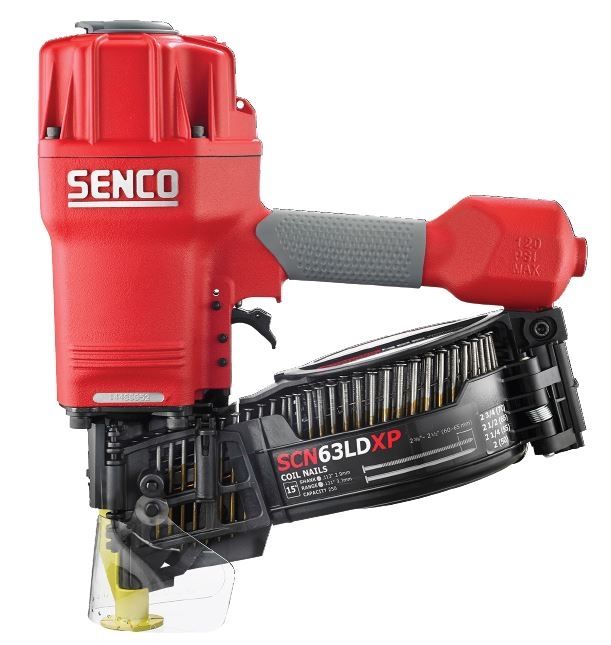

Senco SCN63LDXP Structural Foam Insulation Nailer, 2-3/8" to 2-1/2"
Box Count: 1
Introducing the Senco SCN63LDXP structural foam insulation nailer, capable of driving 15 degree, 2-3/8" to 2-1/2" wire coil framing nails. Designed specifically for the installation of continuous structural foam insulation panels, the SCN63LDXP Coil Nailer drives nails through up to 1-3/16” thick foam insulation panels. The Senco SCN63LDXP features a long drive lock out, ensuring the proper seating of a nail head - through the foam - against the substrate. The unique safety foot guide ensures proper alignment and reduces damage to the foam surface when fasteners are driven. The SCN63LDXP fastening system reduces installation time and improves productivity on the job site or for in-plant operations. Additional features on this tool include 360 degree adjustable exhaust, tool-free depth of drive adjustment, comfort grip, adjustable nail canister, e-z load design and debris shield. This Senco insulation nailer also comes with a five-year limited warranty from the manufacturer.
*This tool is to ONLY be used to install continuous foam insulation with a foam thickness of up to 1-3/16” deep. NEVER use on bare wood, metal or other hard surfaces. The drive blade will extend beyond the safety element in the actuated position. Recommended for Atlas ThermalStar LCi-SS.
**This Item Has Been Discontinued**
- Box Count 1
- SKU 8W0001N
- UPC 741474137174
- Power Type Pneumatic
- Collation Type Wire Weld
- Maximum Fastener Length 2-1/2"
- Condition New
- Case/Bag Included No
- Manufacturer's Warranty Five-Year Limited
- Item Width 5-19/50"
- Special Features Long Drive Blade
- Item Height 13-7/20"
- Item Length 12-22/25"
- Magazine Capacity 225-250
- Country of Manufacture Taiwan
- Item Weight 8.1 lbs.
- Usage Type Exterior
- Minimum Fastener Length 2-3/8"
- Housing Material Aluminum
- Operating Pressure 70 to 120 PSI
- Firing Type Sequential
- Air Inlet Size 3/8" NPT
- Air Consumption 9.54 SCFM
- Model SCN63LDXP
- Depth Control Yes
- Power Source Air
- Special Offer No
- Diameter Range .113" to .131"
- Product Degree/Angle 15 Degree
- Magazine Type Coil
- Fastener Type Insulation Nailer
