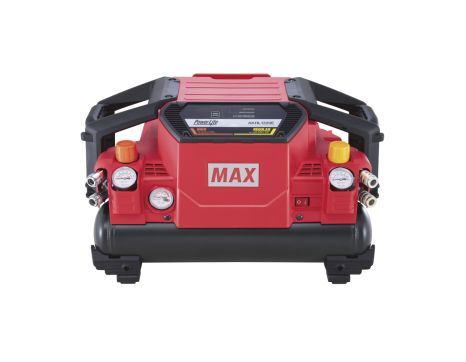

MAX AKHL1320E PowerLite High Pressure Air Compressor

Box Count
1
SKU
AKHL1320E
$1,447.00
MAX AKHL1320E PowerLite High Pressure Air Compressor AKHL1320E

Box Count: 1

$1,447.00
Qty:
In Stock,Subject To Manufacturer Availability This item is shipped directly from the manufacturer to you
Qty:
In Stock,Subject To Manufacturer Availability This item is shipped directly from the manufacturer to you. In the event there is a delay in shipping due to availability, We will contact you via email within one business day of your order being placed.
Product Overview

The MAX USA AKHL1320E PowerLite is a high-pressure, ultra-quiet air compressor designed for professional users. It features a 2.64 gallon air tank, providing 15% more air volume than the previous model, for improved continuous fastening ability.  A new Patented Outer Rotor Motor Design provides more torque at slower speeds, allowing for quieter operation (rated decibel level not specified) and increased CFM (cubic feet per minute) output.  Inverter circuitry automatically adjusts motor RPM to maintain performance even in low voltage situations.

This PowerLite air compressor features a quiet mode setting, making the compressor suitable for jobs that require quiet operations like in hospitals or schools. An LED control panel alerts you when maintenance is due, service is required, low voltage (under 70V), high voltage (over 138V), and high motor/control circuit temperatures. The AKHL1320E can handle a wide range of air tools, with two connections for high-pressure tools (up to 500 PSI) and two for regular pressure tools (up to 100 PSI). For additional convenience, an optional AKTH15 tank can be easily added to increase total air capacity to nearly 6.6 gallons. Pair this compressor with the MAX AKTH15 PowerLite High Pressure Tri-Tank (sold separately) to turn this model into a 5-tank! When used with both the AKTH15 tank and ARC-H1 Splitter (also sold separately), this compressor can run up to four 500 PSI guns at once.

The MAX AKHL1320E replaces the MAX AKHL1260E compressor. This AKHL1320E Compressor is ONLY compatible with the MAX AKTH15 Tri-Tank.

WARNING: California residents, this item qualifies for Proposition 65 legislation.
Specifications
  • Resources

    Manual

    Sell Sheet

  • Box Count 1
  • SKU AKHL1320E
  • UPC 093818303371
  • Power Type Electric
  • Brand MAX USA
  • Condition New
  • Product Color Red, Black
  • Case/Bag Included No
  • Item Width 14"
  • Special Features 15% More Air Volume, Four Air Outlets, DC Brushless Motor, More Torque at Slower Speed
  • Item Height 13-1/4"
  • Item Length 22-1/2"
  • Item Weight 38.9 lbs.
  • Oil Capacity Oil-Less
  • Tank Capacity 2.64 Gallons
  • Housing Material Plastic, Aluminum
  • Operating Pressure 100 to 500 PSI
  • Air Consumption 3.3 CFM @100PSI
  • Product Type Air Compressor
  • RPM 2,450 (Normal mode)/ 1,400 (Quiet mode)
  • Amp Hours 13.0 Ah
  • Power Source Electricity
  • Noise Level 65 dBA
  • Horse Power 2.0 HP
  • Special Offer No
