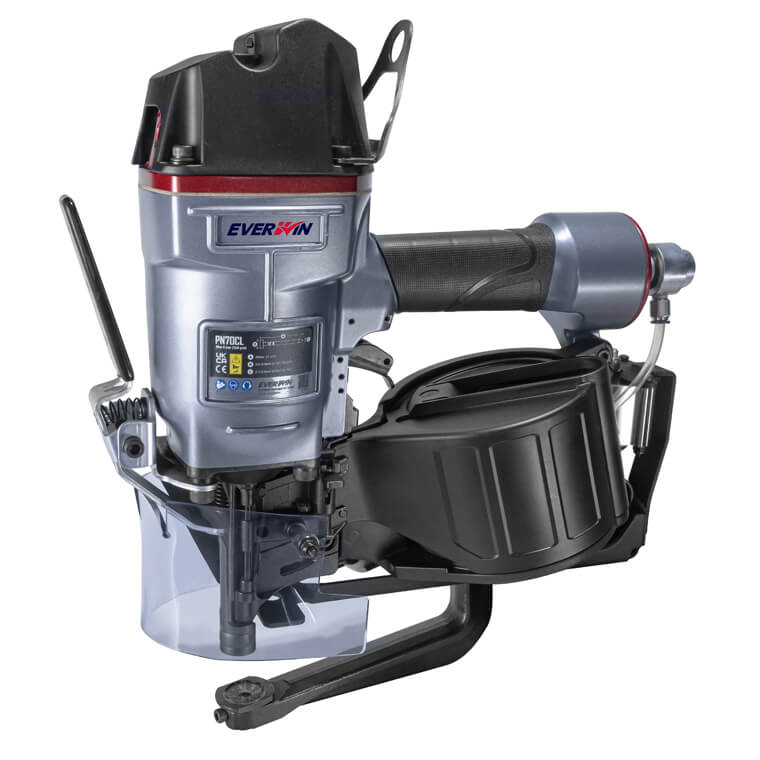

Everwin PN70CL Pallet Clinch Nailer, 1-3/4"
Box Count: 1

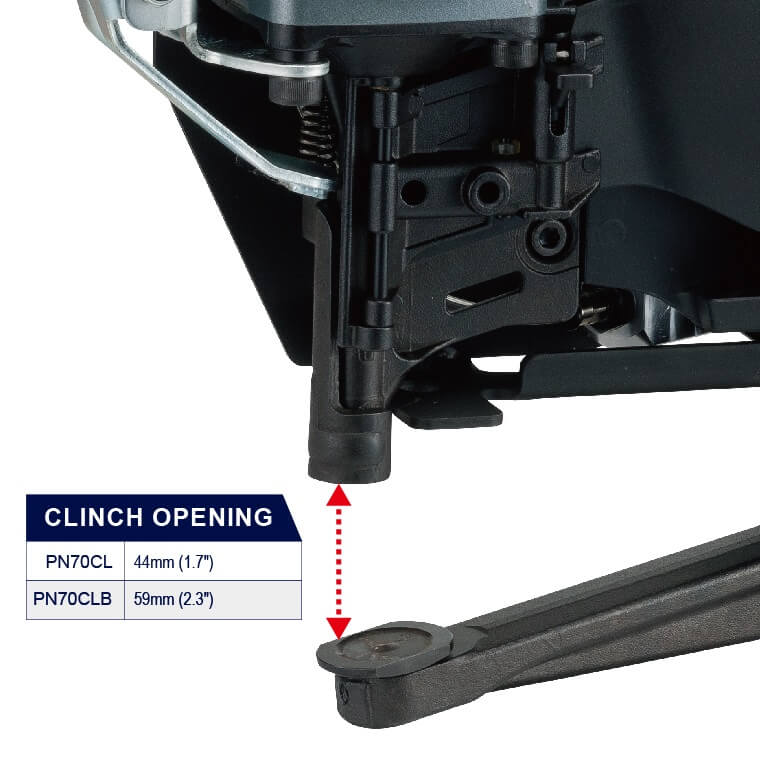

The PN70CL Pallet Clinch Nailer, 1-3/4" is a patented pneumatic tool that revolutionizes the way string pallets are repaired. This clinch nailer has a 1.7" clinch opening, and is designed to drive 15° Wire Coil Clinch Nails 1-3/4" x 0.083-0.110". This tool is engineered to improve operation safety while boosting efficiency for pallet repair clinch nailing applications. The PN70CL is an industrial tool with a built-in anvil that nails are driven against, which results in nails clinched as intended in pallet repair. Throat depth on the PN70CL is approximately 6-3/8" deep, and 1-3/4" tall.
EVERWIN's patented ClinchArm air route ensures the anvil clamps pallet strings firmly before each nail is driven, resulting in an optimal clinch-yield rate. Once the trigger is pulled, the following sequence of motions happen:
1) The PN70CL's clinch arm is brought upwards by a rear cylinder.
2) The first sequence clamps pallet strings against each other.
3) A nail is driven and clinched against the anvil attached to the clinch arm.
The PN70CL is lightweight and tough, making it ideal for professional contractors. It features a cap shield to cover airlines and minimize maintenance, a hanger bracket to minimize fatigue, and dust cover to block nails or wire chips. Buy your PN70CL Clinch Nailer today at Nail Gun Depot!

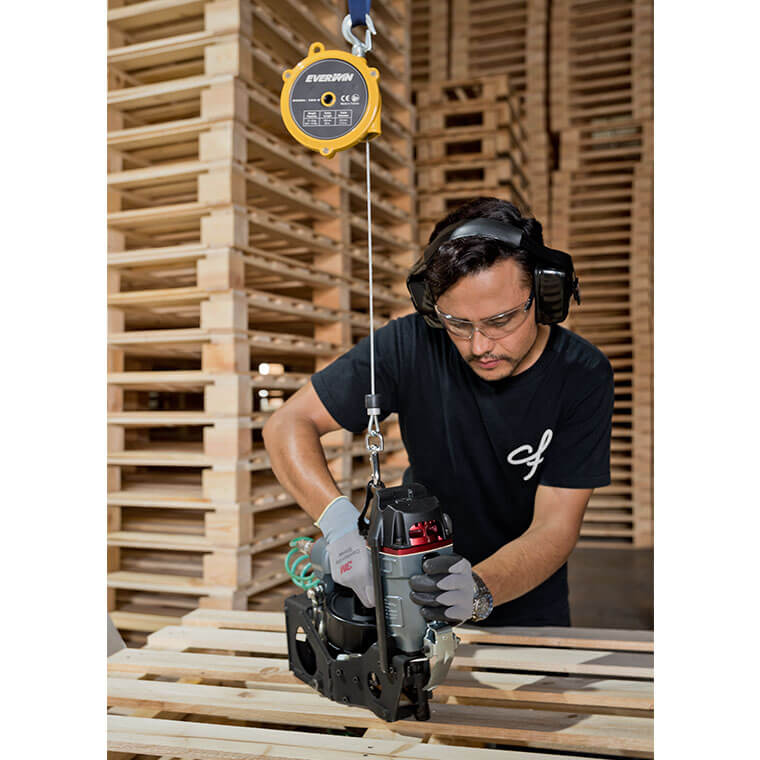

NOTE: PN70CL Model is ideal for 1.5" total board thickness. Counter Balancer is sold separately.
- Resources
- Box Count 1
- SKU PN70CL
- Power Type Pneumatic
- Collation Type Wire
- Application Type Pallet Assembly
- Brand Everwin
- Maximum Fastener Length 1-3/4"
- Condition New

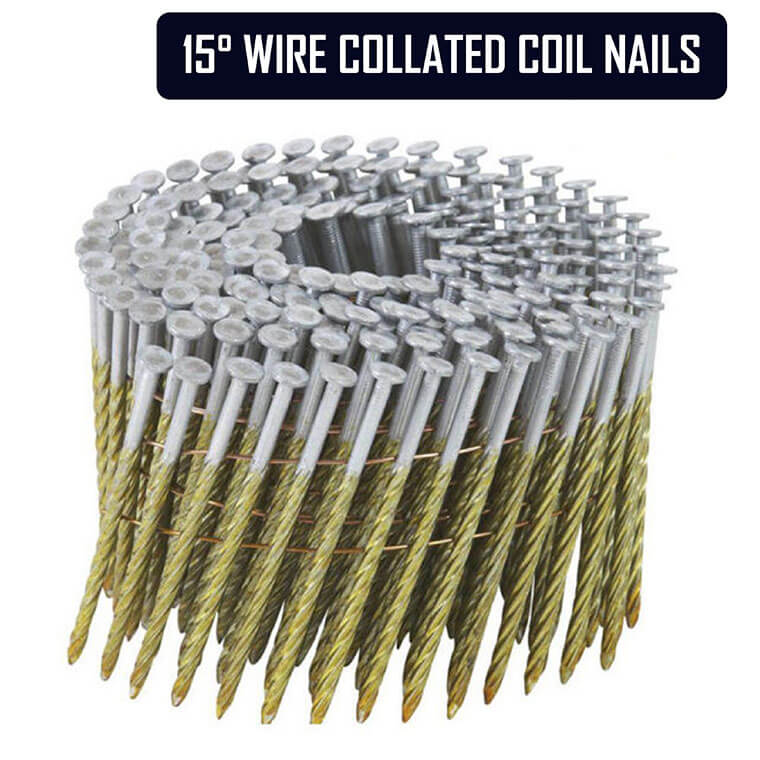

- Fastener Compatibility 15° Wire Coil Nails
- Fastener Shank Diameter 0.083" - 0.110"
- Case/Bag Included No
- Fastener Head Diameter 0.197" - 0.270"
- Fastener Shank Type Smooth, Screw or Ring
- Manufacturer's Warranty One-Year Limited
- Item Width 6.1"
- Special Features Dust Cover, Backup Anvil, Patented Clinch Sequence Design
- Item Height 15.9"
- Item Length 14.8"
- Magazine Capacity 225-300
- Item Weight 17.4 lbs.
- Usage Type Interior
- Minimum Fastener Length 1-3/4"
- Housing Material Metal, Steel
- Operating Pressure 70 to 120 psi
- Firing Type Contact
- Air Inlet Size 1/4”-18 NPT
- Air Consumption 3.6 cfm
- Product Type Nailer
- Depth Control No
- Power Source Air
- Special Offer No
- Product Degree/Angle 15 Degree
- Magazine Type Coil
- Fastener Type Clinch Nails
